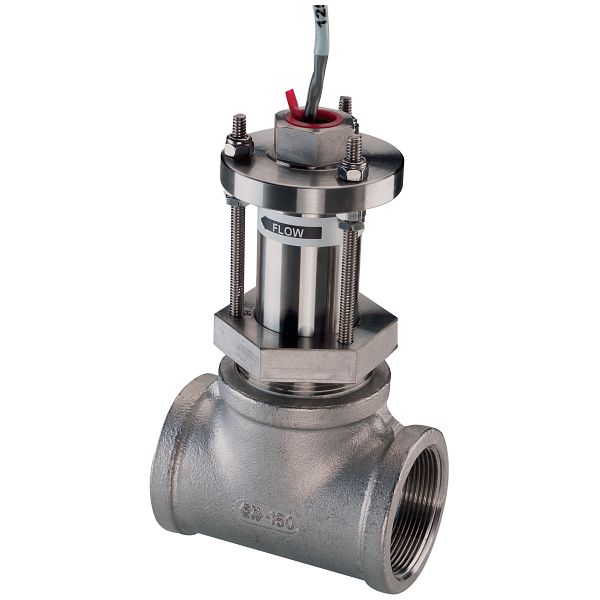

Impeller Metallic Tee Type Flow Sensors - Series 228

The Series 228 flow sensors from Badger Meter® feature a six-bladed impeller design with a proprietary non-magnetic sensing mechanism. The forward-swept impeller shape provides higher, more consistent torque than four-bladed impeller designs and is less prone to be fouled by water-borne debris.

The forward curved shape coupled with the absence of magnetic drag provides improved operation and repeatability, even at lower flow rates. This is especially true when the impeller is exposed to metallic or rust particles found in steel or iron pipes. As the liquid flow turns the impeller, a low-impedance square wave signal is transmitted with a frequency proportional to the flow rate.

The signal can travel up to 2000 ft between the flow sensor and the display unit without the need for amplification.
All sensors, except irrigation versions, are supplied with 20 ft of 2-conductor 20 AWG shielded UL type PTLC 221° F (105° C) cable.
